Description
🔗 Precise Connection for Micro-irrigation Lines

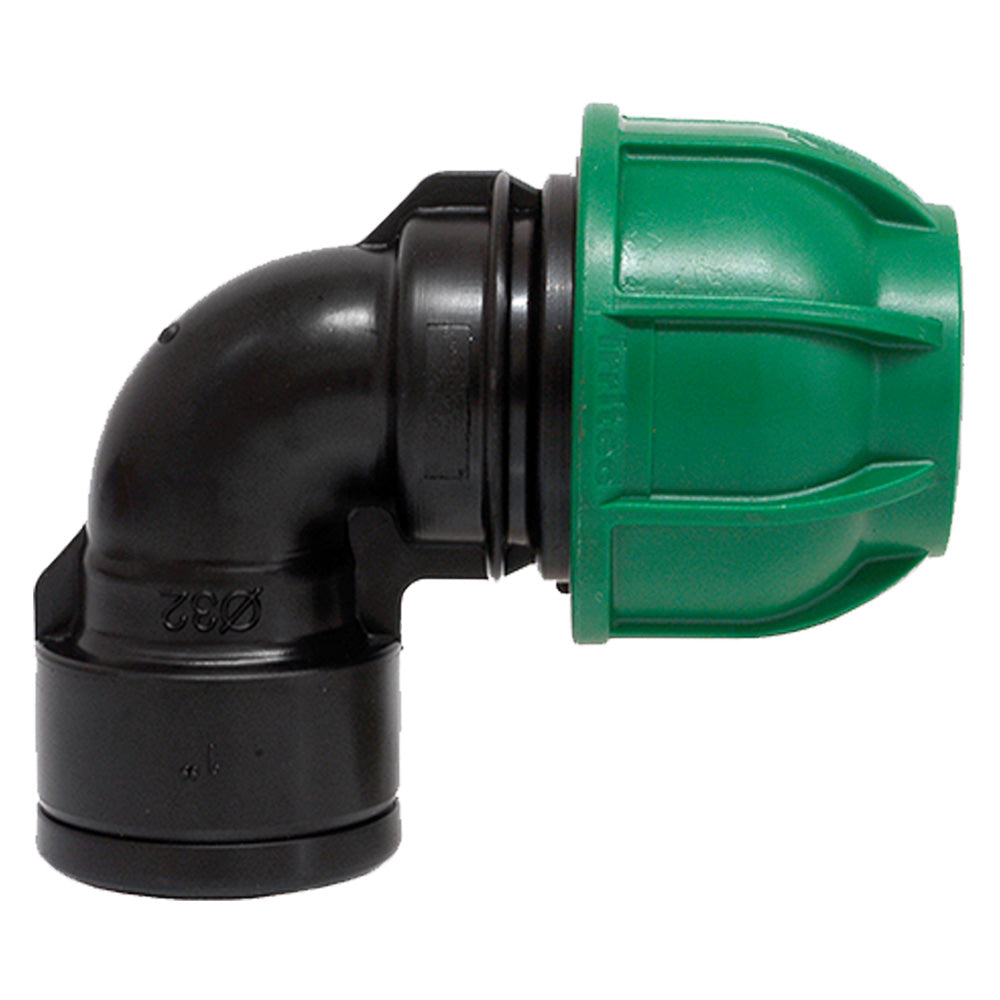

The 90° Elbow with Female Branch was created to offer a concrete solution for those who need to manage the connection, branching, reduction, and closure of pipes in irrigation systems. This product is from Irritec and is presented with useful data to compare its function, measurements, and operating conditions, without resorting to unforeseen adaptations.
For the 90° Elbow with Female Branch, the declared configurations include: Ø 16 x 1/2 - PN 10; Ø 20 x 1/2 - PN 10; Ø 25 x 3/4 - PN 10; Ø 32 x 1 - PN 10; Ø 40 x 11/4 - PN 10. Identifying the correct version before purchase allows for an evaluation of its bulk, capacity, and compatibility with the equipment or intended environment.
✅ Specific Benefits of Use
Proper configuration supports operational continuity and quality of results. In the case of the 90° Elbow with Female Branch, the main benefit is its ability to build or modify the circuit with a connection consistent with the required measurements and function.
- Targeted efficiency: choice guided by diameters and threads.
- Technical control: creation of specific bends and branches.
- Operational practicality: verifiable seal after assembly.
- Informed choice: accessible maintenance of connection points.
Precise assembly and a suitable environment allow the 90° Elbow with Female Branch to operate without undue stress.
🧱 Materials, Structure, and Construction
Each component must maintain its geometry and integrity during its intended use. For the 90° Elbow with Female Branch, the identifiable materials are plastic. The body, nuts, rings, and sealing surfaces must withstand the expected pressure and maintain their geometry and tightness during operation.
The available technical information for the 90° Elbow with Female Branch specifies: Made of polypropylene. Compression fitting, compliant with current regulations UNI-7990:2004, UNI-EN 12201-2:2004, DIN 8074:1999, and standards for conveying drinking water and pressurized fluids. Particularly suitable for irrigation and gardening systems. Before use, check surfaces, fasteners, edges, and functional parts, avoiding modifications that could alter resistance or compatibility.
⚙️ Technical Data and Operational Function
Careful reading of specifications prevents improper assembly and ineffective use. For the 90° Elbow with Female Branch, the diameter, thread, connection type, nominal pressure, and fitting geometry must match the pipes and components of the system. Variants must be compared considering the characteristics of the machine, the nature of the material to be treated, and the required performance level.
The function of the 90° Elbow with Female Branch is oriented towards connecting, branching, reducing, and closing pipes in irrigation systems. The described configuration includes Ø 16 x 1/2 - PN 10; Ø 20 x 1/2 - PN 10; Ø 25 x 3/4 - PN 10; Ø 32 x 1 - PN 10; Ø 40 x 11/4 - PN 10; the manufacturer's manual remains the reference for limits, assembly, adjustments, and necessary protection devices.
🔧 Preparation and Method of Use
Adhering to the operating sequence is essential for controlled work. When using the 90° Elbow with Female Branch, use protective equipment consistent with the activity and prevent access to the operating area by uninvolved persons or animals.
- Measure pipe and thread before assembly.
- Cut the pipe perpendicularly and clean the end.
- Insert each element in the intended sequence.
- Tighten uniformly without damaging threads or nuts.
- Pressurize gradually and check each joint.
If the 90° Elbow with Female Branch shows instability, friction, noise, or unexpected operation, stop work and inspect the system.
🧼 Cleaning, Storage, and Maintenance
For the 90° Elbow with Female Branch, proper care after use extends the lifespan of the components. Inspect nuts, threads, and gaskets, remove dirt and residue from seats, and protect disassembled fittings from impacts, frost, and contamination.
Before storing the 90° Elbow with Female Branch, remove residue, allow materials to dry, and separate any damaged components.
🏡 Professional Application Areas
For the 90° Elbow with Female Branch, the primary use includes connecting, branching, reducing, bending, closing, and distributing water in systems for vegetable gardens, gardens, greenhouses, and crops. The specific technical reference is: Made of polypropylene. Compression fitting, compliant with current regulations UNI-7990:2004, UNI-EN 12201-2:2004, DIN 8074:1999 and it can be part of the equipment for discerning private individuals, green space maintainers, and professional operators when characteristics and working conditions are compatible.
Actual conditions may alter the performance of the 90° Elbow with Female Branch; consult the instructions before changing the environment or function.
🎯 How to Identify the Correct Version
The correct model is identified based on actual operating conditions. For the 90° Elbow with Female Branch, determine the external pipe diameter, thread size and type, nominal pressure, male or female configuration, and line direction. A similar measurement does not guarantee a correct seal.
For the 90° Elbow with Female Branch, the name and measurements of the variant must match the target system; if in doubt, a technical verification is necessary.
WHY CHOOSE IT?
It is recommended for a conscious purchase because the 90° Elbow with Female Branch allows you to build or modify the circuit with a connection consistent with the required measurements and function. The description highlights the parameters that help to understand where it can offer a concrete advantage.
With the correct configuration, the 90° Elbow with Female Branch helps to make the activity more orderly and proportionate to the needs.
