Description
🔗 Precise Connection for Micro-irrigation Lines

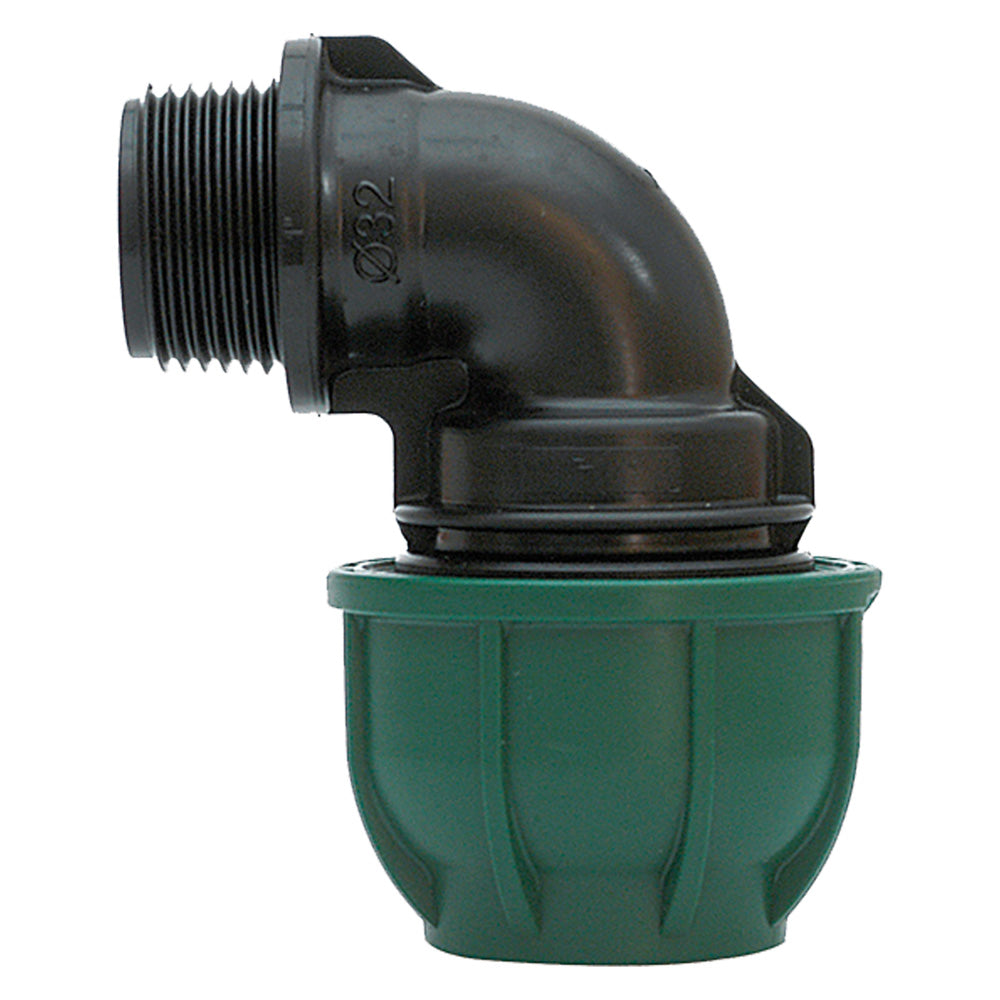

The 90° Elbow with Male Take-off is a technical solution designed for connecting, branching, reducing, and closing pipes in irrigation systems. This product is from Irritec and is presented with useful data to compare function, measurements, and operating conditions, without resorting to unintended adaptations.
For the 90° Elbow with Male Take-off, the declared configurations include: Ø 16 x 1/2 - PN 10; Ø 20 x 1/2 - PN 12.5; Ø 25 x 3/4 - PN 12.5; Ø 32 x 1 - PN 12.5; Ø 40 x 11/4 - PN 10. Identifying the correct version before purchase allows for evaluation of space requirements, capacity, and compatibility with the equipment or intended environment.
✅ Specific Benefits in Use
The user can compare the decisive elements before starting work. In the case of the 90° Elbow with Male Take-off, the main benefit is that it allows the circuit to be built or modified with a connection consistent with the required measurements and function.
- Targeted efficiency: orderly connection between compatible pipes.
- Technical control: choice guided by diameters and threads.
- Operational practicality: creation of targeted bends and branches.
- Informed choice: verifiable seal after assembly.
The 90° Elbow with Male Take-off demonstrates its value when correctly matched to the machine and used within the declared specifications.
🧱 Materials, Structure, and Construction
Perceived quality also depends on the consistency between material and function. For the 90° Elbow with Male Take-off, the detectable materials are plastic. The body, nuts, rings, and sealing surfaces must withstand the expected pressure and maintain their geometry and tightness during operation.
The technical information available for the 90° Elbow with Male Take-off specifies: Made of polypropylene. Compression fitting, compliant with current UNI-7990:2004, UNI-EN 12201-2:2004, DIN 8074:1999 standards and with standards for conveying drinking water and pressurized fluids. Particularly suitable for irrigation and gardening systems. Before use, check surfaces, fastenings, edges, and functional parts, avoiding modifications that could alter resistance or compatibility.
⚙️ Technical Data and Operational Function
Measurements and functional characteristics are not minor details, but selection criteria. For the 90° Elbow with Male Take-off, the diameter, thread, type of connection, nominal pressure, and geometry of the fitting must correspond to the pipes and components of the system. Variants must be compared considering the characteristics of the machine, the nature of the material to be treated, and the required performance level.
The function of the 90° Elbow with Male Take-off is aimed at connecting, branching, reducing, and closing pipes in irrigation systems. The described configuration includes Ø 16 x 1/2 - PN 10; Ø 20 x 1/2 - PN 12.5; Ø 25 x 3/4 - PN 12.5; Ø 32 x 1 - PN 12.5; Ø 40 x 11/4 - PN 10; the manufacturer's manual remains the reference for limits, assembly, adjustments, and necessary protective devices.
🔧 Preparation and Method of Use
Before operating, it is necessary to prepare the machine, accessories, and work area. When using the 90° Elbow with Male Take-off, use protective devices consistent with the activity and prevent access to the operating area by uninvolved persons or animals.
- Measure pipe and thread before assembly.
- Cut the pipe perpendicularly and clean the end.
- Insert each element in the intended sequence.
- Tighten evenly without damaging threads or nuts.
- Pressurize gradually and check each joint.
Observe the behavior of the 90° Elbow with Male Take-off in the first few minutes and stop the machine if the result becomes irregular.
🧼 Cleaning, Storage, and Maintenance
For the 90° Elbow with Male Take-off, visual inspection should become part of the normal operating routine. Inspect nuts, threads, and gaskets, remove dirt and residues from the seats, and protect disassembled fittings from impacts, frost, and contamination.
After cleaning the 90° Elbow with Male Take-off, recheck fastenings and surfaces and choose a protected storage location.
🏡 Professional Application Areas
For the 90° Elbow with Male Take-off, the main application includes connection, branching, reduction, bending, closing, and water distribution in systems for vegetable gardens, gardens, greenhouses, and crops. The specific technical reference is: Made of polypropylene. Compression fitting, compliant with current UNI-7990:2004, UNI-EN 12201-2:2004, DIN 8074:1999 standards and can be found in the equipment of demanding private individuals, green space maintainers, and professional operators when characteristics and working conditions are compatible.
The suitability of the 90° Elbow with Male Take-off remains linked to the declared context and cannot be deduced solely from the product's appearance.
🎯 How to Identify the Correct Version
A professional selection considers specifications, environment, and work intensity together. For the 90° Elbow with Male Take-off, detect the pipe's outer diameter, thread size and type, nominal pressure, male or female configuration, and line direction. A similar measurement does not guarantee the correct seal.
For the 90° Elbow with Male Take-off, the designation and measurements of the variant must match the destination system; in case of doubt, a technical verification is needed.
WHY CHOOSE IT?
It stands out because the 90° Elbow with Male Take-off allows the circuit to be built or modified with a connection consistent with the required measurements and function. The description highlights the parameters that help understand where it can offer a concrete advantage.
Choosing the 90° Elbow with Male Take-off means prioritizing a verifiable solution, to be used in compliance with the specified technical conditions.
